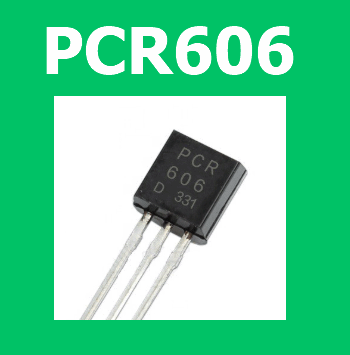

Datasheet PCR606 Equivalent ( PDF ) - SCR

General purpose bidirectional switching / Phase control applications / Solid state relays

Elektronische Bauelemente PCR406 , PCR606 Silicon Planar PNPN Thyristors RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free MAIN FEATURES Symbol IT(RMS) VRRM PCR406 PCR606 Rating 0.6 400 600 Unit A V DESCRIPTION Logic level sensitive gate triac intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circui

Description: Highly sensitive triggering levels,the PCRX06 Series SCRs is suitable for all applications,where the available gate currentis limited,such as capacitive discharge ignitions,motor control in kitchen aids, overvoltage crowbar protection in low power supplies... Features: Blocking voltage to 400, 600V On-state RMS current to 0.6A Non-repetitive peak on-state current to 6A Absolute Max

SHENZHEN HAOCHANG SEMICONDUCTOR CO.,LTD. TO-92 Plastic-Encapsulate Thyristors PCR606 Silicon Planar pnpn Thyristor TO-92 MAIN FEATURES Symbol v IT(RMS) VDRM, VRRM PCR406 PCR606 TJ Junction Temperature Tstg Storage Temperature alue 0.6 400 600 -40 to 125 -40 to 150 unit A V ℃ ℃ 1.CATHODE 2.GATE 3.ANODE 123 DESCRIPTION Logic level sensitive gate triac intended to be interfaced dire

PCR606J Sensitive Gate Silicon Controlled Rectifiers Symbol 2. Gate ○ Features ▼ 1 23 ○ ○ 3. Anode 1. Cathode Repetitive Peak Off-State Voltage : 600V ◆ R.M.S On-State Current ( IT(RMS)= 0.6 A ) ◆ Low On-State Voltage (1.2V(Typ.)@ ITM) ◆ TO-92 General Description Sensitive triggering SCR is suitable for the application where gate current limited such as small motor control,
